Format 01 · Rigid box
Rigid box

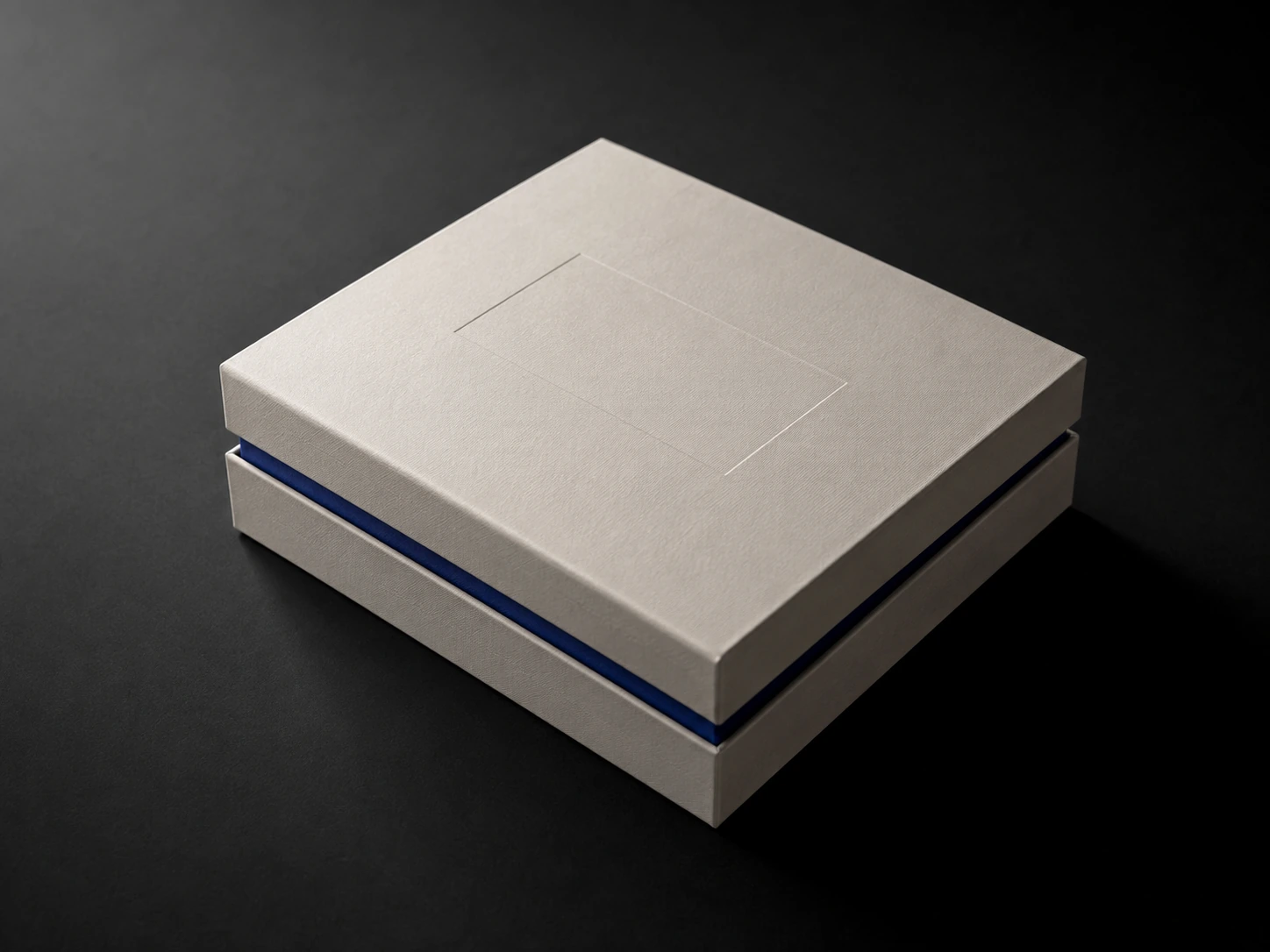

Wrapped greyboard boxes that hold their shape and open with measured resistance. Well suited to launch kits, executive gifting and products that need a substantial presentation format.
A strong fit when
- The opening experience is an important part of the presentation
- The product inside is heavy, fragile or oddly shaped
- You need a magnetic or ribbon closure
- The box will be kept and reused after the product leaves it
Consider another format when
- The unit will travel through a courier network without a protective outer
- A lighter folding carton already provides enough protection and presence
- A one-off run cannot justify the tooling and assembly within the available budget
How it is built
The construction decisions that shape the result.
- 01Greyboard
- The rigid core, usually 1.5mm to 3mm. Greater thickness can hold a crisper corner and requires more work to wrap.
- 02Wrap
- The printed paper or cloth taken around the board. The turns and joins at the corners reveal how carefully the box has been wrapped.
- 03Turn-in
- How far the wrap folds over the top edge into the box. Adequate turn-ins protect the edge and create a cleaner interior finish.
- 04Platform or insert
- Foam, moulded pulp or folded board. It determines how the product is presented and supported during transit.
Stocks we run
- Uncoated wrap papers, 120–170gsm
- Book cloth and buckram
- Soft-touch laminated art paper
- Greyboard core, 1.5–3mm
Finishes available
- Blind emboss and deboss
- Hot foil
- Spot UV over matt lamination
- Screen-printed solids
Quantities and lead time
Both depend on structure, stock and finish, and quoting them without a live brief would be misleading. Share the job and we will price the specification against your date.
Start a rigid box briefSeen in
Aster ObjectsServices that cover it
Rigid box questions
Useful before we begin.
01Why does a rigid box usually cost more than a folding carton?+
A folding carton is made from one printed sheet that is cut, creased and glued. A rigid box uses a separate board structure and printed wrap that are brought together, often with hand work at the corners. The additional materials and assembly affect the cost.
02Can rigid boxes ship flat?+
Yes. Collapsible rigid constructions can ship flat and fold into shape with magnets or ribbon at the destination. They generally cost more per unit than set-up boxes, but can reduce storage and freight volume. The better option depends on quantity, packing labour and the delivery plan.
Specify the project
Let us shape the right rigid box around the job.
Share the contents, dimensions, quantity, finish direction and delivery date. We will identify the decisions that need a sample, proof or structural check.
